Multicopter
I-UAV QC1:
| Length axis to axis | 1908 mm |
| Width axis to axis | 1535 mm |
| Endurance | 45 min |
| Payload Max | 20 kg |
| MTOW | 50 kg |
| Max Speed | 25 m/s |
| Max Altitude (AMSL) | 2,500 m |
| Range | 3 km |
| Operating Frequency | 2.400 GHz |
| Battery | 12 S- LiPo |
| Dimensions | Diagonal wheelbase 45 cm |
| Stabilization | 3-axis (pitch, roll, yaw) |
| Operating Temperature | -20°C to 45°C |

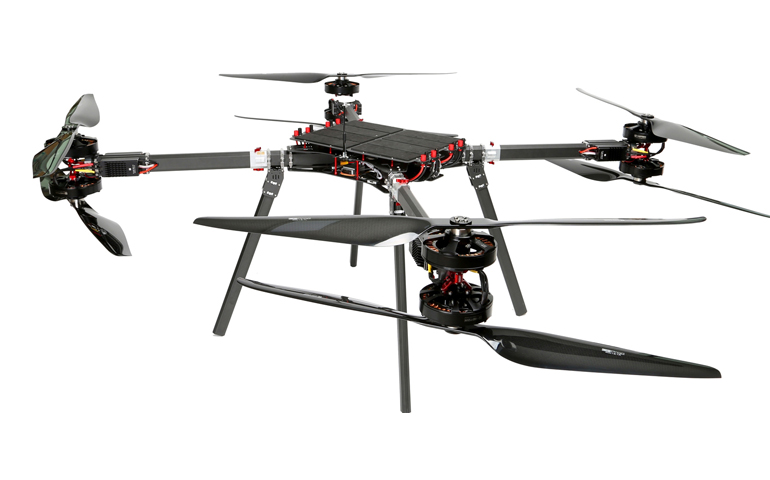

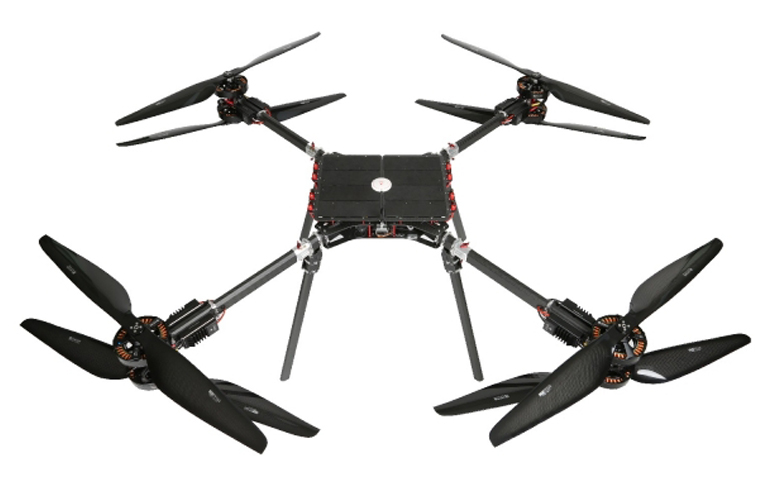

I-UAV MSX-40:
The RTF(RTF : Ready To Fly.), which is the one of our superlative service, will provide you to improve business quality.
Our superb engineer will provide the convenient experience with carefully selected propulsion system and optimized assembling, wiring.
Just simply plug on the power and fly it away. Enjoy the experience the power of the Heavy Duty industrial drone
We can provide RTF not only MSX-40 also other frames.
Propulsion system can be changed by 3rd parties supply.
| Frame | Airframe No. | MSX-1700 |
| Dimension | 1700 mm | |
| Center Plate D | 430 mm (3T) | |
| Prop size Limit | 24 inch | |
| Material | Carbon + Aluminum | |
| ESC | Continuous Current | 80 A |
| Operating Voltage | 12S Li-Po | |
| Motor | KV | 85 KV |
| MAX Power(W) | 2370 W | |
| Propeller | Diameter x Pitch | 32 x 11 inch |
| Material | CF + Epoxy | |
| Ability (functions are optional) | Waypoint, Return to Home, D-GPS, Retractable Landing Gear, Customizing, Canopy, Weather Proof, FPV, GIMBAL System ETC. | |
| Flight Parameter | Velocity | 60km/h (limited) |
